ZMDE's H-beam straightening machine is designed to correct deformations in H-beam flange plates during the welding process. It features a compact structure, easy operation, and convenient maintenance, making it suitable for various industrial applications.

Working Principle

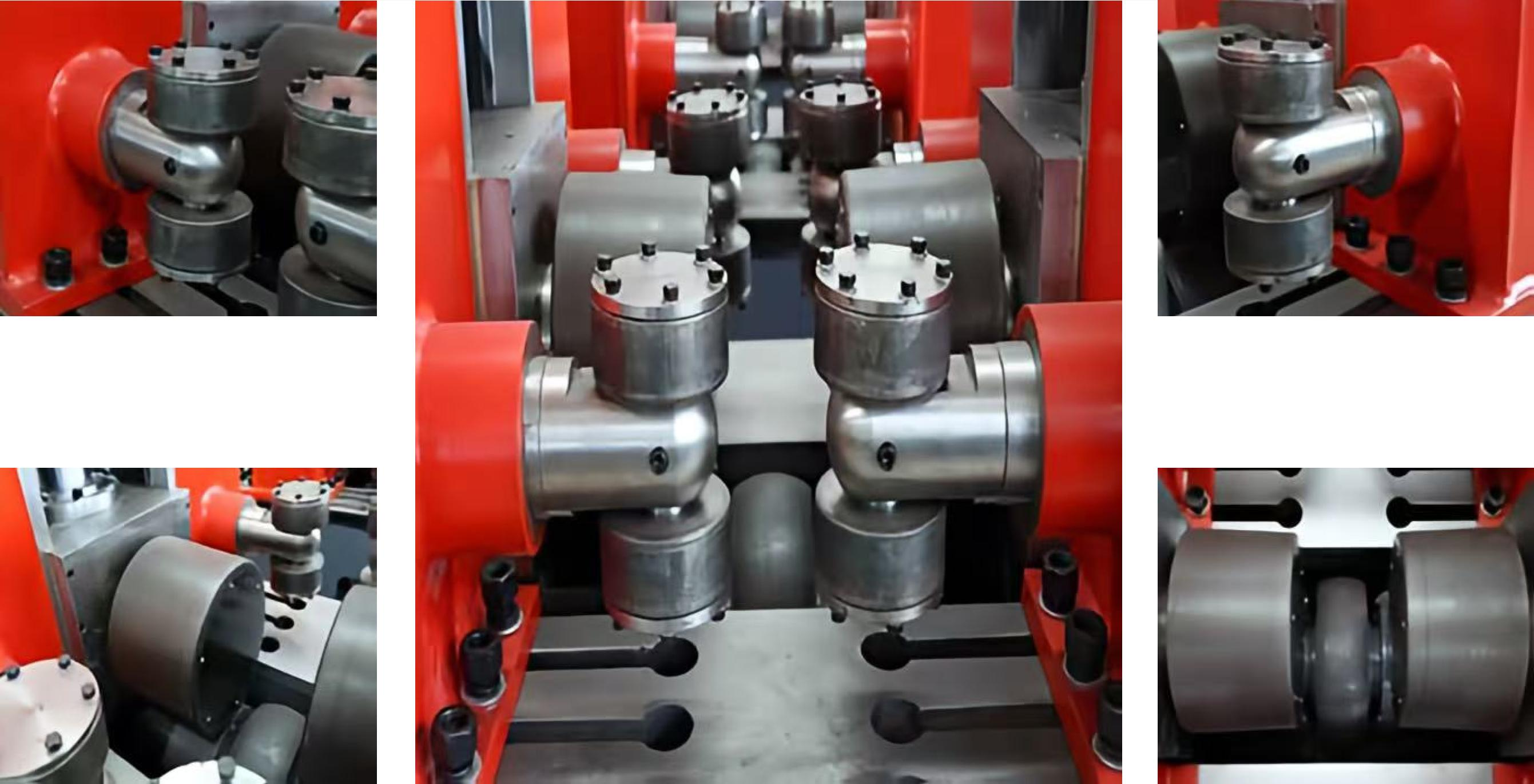

The H-beam straightening machine utilizes upper straightening rollers and a lower straightening roller mechanism. Two upper rollers apply pressure on both sides of the flange plate, while the lower roller presses the center of the flange. The motor-driven gearbox powers the straightening rollers to exert downward force, correcting the deformed flange plate. This process ensures precise and efficient straightening, maintaining welding quality.

Performance Features

The machine employs a lever-type die design using upper rollers and drive rollers. This design ensures continuous, stable over-bending deformation, allowing the flange plate to recover elastically to the desired straightened shape. The straightening rollers are made from high-quality alloy steel and undergo advanced heat treatment, reducing the risk of cracking and enhancing durability.

The machine is easy to operate, offers high efficiency, and is ideal for large-scale construction, hydraulic bridges, metallurgy, and other metal structure industries.

ZMDE's H-beam straightening machine provides high-precision and reliable solutions for flange plate straightening, ensuring improved welding outcomes and efficiency in production.
